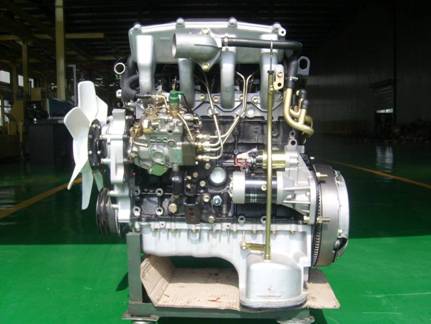

Type

4JB1

4JB1T

Bore x stroke



93mm x 102mm

Type

4 stroke, water cooling, inline, direct injection combustion chamber

Displacement

2.771L

Compression ratio



18.2 : 1

Ignition order

1-3-4-2

Lubricating method

Forced and Splash lubrication

Rated power/speed

57 kw /3,600 rpm

68kw/3,600rpm

Max torque/speed

172 N .m /2,000rpm

200 N .m /2,000rpm

Output per litre

20.6kw/L

24.5kw/L

Min fuel consumption

≤221 g/kw.h



Item

4JB1/4JB1T  Engine

Dimensions (L * W * H)

850*630*750 MM

Volume per set

0.41 M3

Gross weight

255/265 KG

Net weight

230/245 KG

Packing

Plastic bag + steel bracket + paper carton

20# Container Load
5.9*2.32*2.32（m）

63 SET













Type

4JA1

Bore x stroke

93mm x 92mm

Type

4 stroke, water cooling, inline, direct injection combustion chamber

Displacement

2.449L

Compression ratio

18.4 : 1

Ignition order

1-3-4-2

Lubricating method

Forced and Splash lubrication

Rated power/speed

50 kw /3,600 rpm

Max torque/speed

176 N .m /2,000rpm

Min fuel consumption

≤231 g/kw.h



Item

Unit

4JA1  Engine

Dimensions (L * W * H)

mm

850*630*750

Volume per set

M3

0.41

Gross weight

Kg

255/265

Net weight

Kg

230/245

Packing

Plastic bag + steel bracket + paper carton

20# Container Load
5.9*2.32*2.32（m）

set

63







ISUZU 4BD1 AND 4BD1T DIESEL ENGINE

The main technical parameters of  ISUZU ENGINE

Model

4BD1

4BD1T

Type

Vertical, in-line, water-cooled, four strokes

natural aspirated

turbo-charging

No. of cylinder-bore×stroke

4—102×118

Displacement

3.856

Type of combustion chamber

Direct injection, square combustion chamber

Compression ratio

17.5:1

16.5:1

Rated power/speed (KW/r/min)

70.6/3200

88/2800

Max torque/speed(N·m/r/min)

245/2200

324/1400-1800

Full load min.fuel consumption

216

209

Max. idling speed

3520

3080

Idling steady speed

≤650

Firing order

1-3-4-2

1-3-4-2

Emission standard



Euro II

Net weight

330

340

Overall dimension(L×W×H)mm

921×651×751

810×660×813

Application

1.5-3 tons cargo truck,

JAC light-duty truck

　

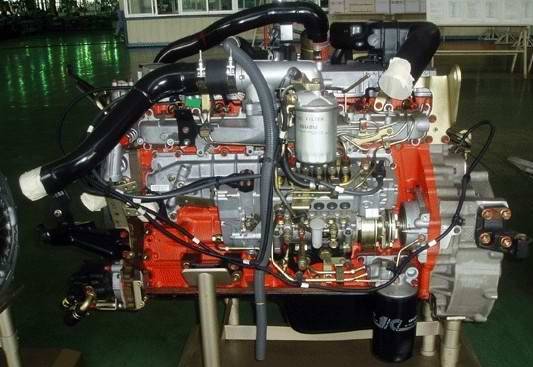

the main technical parameters of ISUZU 6BD1 and 6BD1T

Model

6BD1

6BD1T

Type

Vehicle, in-line, water-cooled, four- stroke

natural aspirated

turbo-charging

  No. of cylinder-bore×stroke

6- 102 X 118

Displacement

5.785

Type of combustion chamber

direct injection, square combustion chamber

Compression ratio

17.5:1

16.5:1

Rated power/speed (KW/r/min)

103（140Ps）/3000

 120/2800

Max torque/speed(N·m/r/min)

 372/2000

 460/1400－1800

Full load min.fuel onsumption

 231.2　220　224.4

 ≤220

Max. idling speed

 3250　3240　3024

 3080

Idling steady speed

 ≤650

 700－750

Oil & fuel consumption percent ratio %

 ≤0.3

  Firing order

 1-5-3-6-2-4

  Emission standard

 EuroⅠ

  Net weight

 480

 495

  Overall dimension(L×W×H)mm

 1220x640x1020

 1240×700×970

  Application

Apply for medium-ton trucks, high-grade intercity buses, Luxury tourist buses and also serves for other machineries by modification.

The main technical parameters of 4HE1T

  Model

 4HE1T

  Type

 Vehicle, in-line, water-cooled, four strokes, supercharged inter-cool

  No. of cylinder-bore×stroke

 4—110×125

  Displacement

 4.752

  Type of combustion chamber

 Direct injection, circular beading combustion chamber

  Compression ratio

 18:1

  Rated power/speed (KW/r/min)

 120/2600　115/2600　125/2300

  Max torque/speed(N·m/r/min)

 520/1400-1600　450/1400-1600　585/1300-1500

  Full load min.fuel onsumption

 ≤210

  Max. idling speed

 2990,　2860,　2530-2645

  Idling steady speed

 700－750

  Oil & fuel consumption percent ratio %

 ≤0.5

  Firing order

 1-3-4-2

  Emission standard

 EuroII

  Net weight

 395

  Overall dimension(L×W×H)mm

 1181×699.8×833.3

















The main technical parameters of 4HE1T

  Model

 4HE1T

  Type

 Vehicle, in-line, water-cooled, four strokes, supercharged inter-cool

  No. of cylinder-bore×stroke

 4—112×125

  Displacement

 4.334

  Type of combustion chamber

 Direct injection, circular beading combustion chamber

  Compression ratio

 18.5:1

  Rated power/speed (KW/r/min)

110/2600

  Max torque/speed(N·m/r/min)

 450/1400-1500

  Full load min.fuel onsumption

 ≤225

  Max. idling speed

3090

  Idling steady speed

 ≤750

  Oil & fuel consumption percent ratio %

 ≤0.6

  Firing order

 1-3-4-2

  Emission standard

 EuroII

  Net weight

 395

  Overall dimension(L×W×H)mm

1121.5×615.5×743.5









ISUZU 4HK1-TC DIESEL ENGINE

ENGINE MODEL

ISUZU 4HK1

ISUZU 4HK1-TC

No-bore×stroke（mm）

4-115×125

compressor ratio

18.5

18.5

chamble shape

ω

ω

valve type

tope,4valve

tope,4valve

dimension(mm)

876×859×928

876×859×928

net weight（kg）

400

400

displacement（L）

5.193

5.193

engine power(kW/r/min)

110/3200

128/3200

max torque（N.m/r/min)

402/2000

500/2000

full loading speed(r/min)

2800

3000

max idle speed(r/min)

3200

3400

min fuel consumptiong/kW.h)/r/min

205

205

　





ENGINE MODEL

6HK1

6HK1-TC

No-bore×stroke（mm）

6-115×125

compressor ratio

17.5

16.9

chamble shape

ω

ω

valve type

tope,4valve

tope,4valve

dimension(mm)

1314×859×928

1312×891×984

net weight（kg）

614

625

displacement（L）

7.79

7.79

engine power(kW/r/min)

169/2700

191/2500

max torque（N.m/r/min)

667/1700

740/1500

full loading speed(r/min)

2800

2600

max idle speed(r/min)

3200

2860

min fuel consumptiong/kW.h)/r/min

218

218
